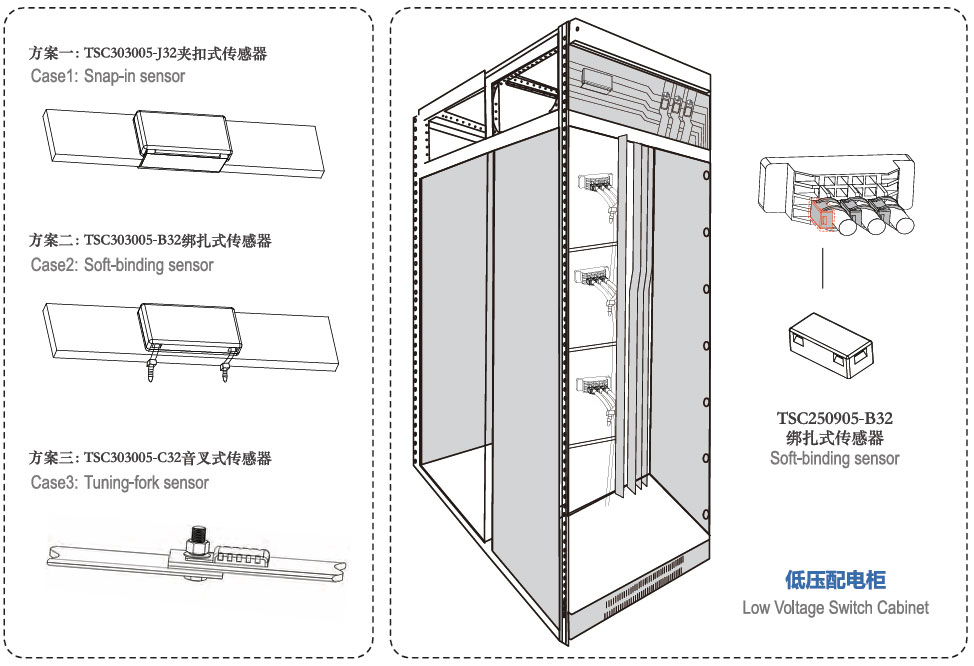

低压配电柜母排及出线部位是温度异常而产生故障的主要部位。且待测点较多、结构复杂。传统方式无法完成监测需求。悦和科技利用小体积、高灵敏度的TSC250905-B32绑扎式传感器固定于出线电缆头处，并使用TSC303005-C32音叉式传感器、TSC303005-J32夹扣式传感器或TSC303005-B32绑扎式传感器实时获取母排温度;并通过安装在电缆室的天线与仪表室的阅读器获取所有待测点的实时温度，方便安全、灵敏可靠。

The temperature of outlet cable and busbar of low-voltage power distribution cabinet will alwavs be abnormal. The complex structure fo theseparts makes it hard to monitor the temperature of them. As a result, Johar launches temperature sensor TSc250905-B32 to bind on the ouletcable.and TSC303005-C32、TSC303005-J32 and TSC303005-B32 to fix on the busbar to monitor the temperature. And communicates with theantenna fixed in the cable vault.

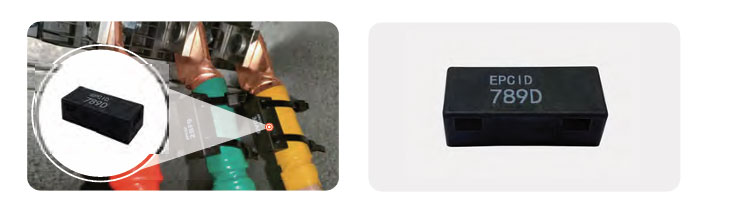

绑扎式传感器 Soft-Binding Sensor

TSC250905-B32绑扎式传感器专为线缆头测温设计，测温范围-40℃~+150℃，误差<1℃。通信距离可达6m。
传感器通过扎带绑扎固定于线缆头处，安装简单，特别适用于低压柜出线测温。整体阻燃等级>UL94-V0;温度量程内频偏<2MHz。

TSC250905-B32 is a temperature sensor designed for Cable head. Temperature range -40'c to +150'C ,eror s 1 c. The communication distancecan reach 6m. The sensor is fixed by cable ties, especially suitable for low-voltage cabinet outgoing cable temperature measurement. Flameretardant grade≥UL94-V0;temperature range intemal frequency offset<2MHz.

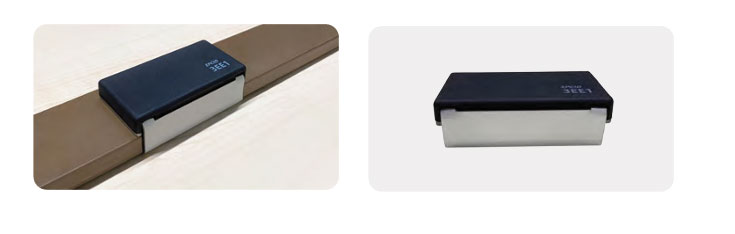

夹扣式传感器 Clip Button Sensor

TSC303005-J32夹扣式传感器专门为母排等复杂环境设计的一款无源无线温度传感器。测温范围-40℃~+150℃，误差<1℃。通信距离可达8m。传感器通过夹扣固定于母排处，安装简单，特别适用于低压柜母排测温。整体阻燃等级>UL94-V0;温度量程内频偏<2MHz。

TSC303005-J32 is a temperature sensor designed for Busbar. Temperature range-40'C to +150'C,errors 1 C. The communication distance canreach 8m. The sensor is fixed by cable ties, especially suitable for low-voltage cabinet busbar temperature measurement. Flame retardant grade≥UL94-V0:temperature range internal frequency offset<2MHz.
