环网柜套管及电缆头处是故障频发的高危区域。伴随着故障呈现的特征就是温度异常，由于高压器件安全要求较高，结构紧凑且真实发热点在内部，允许安装传感器的空间较小，传统方式无法完成监测需求。

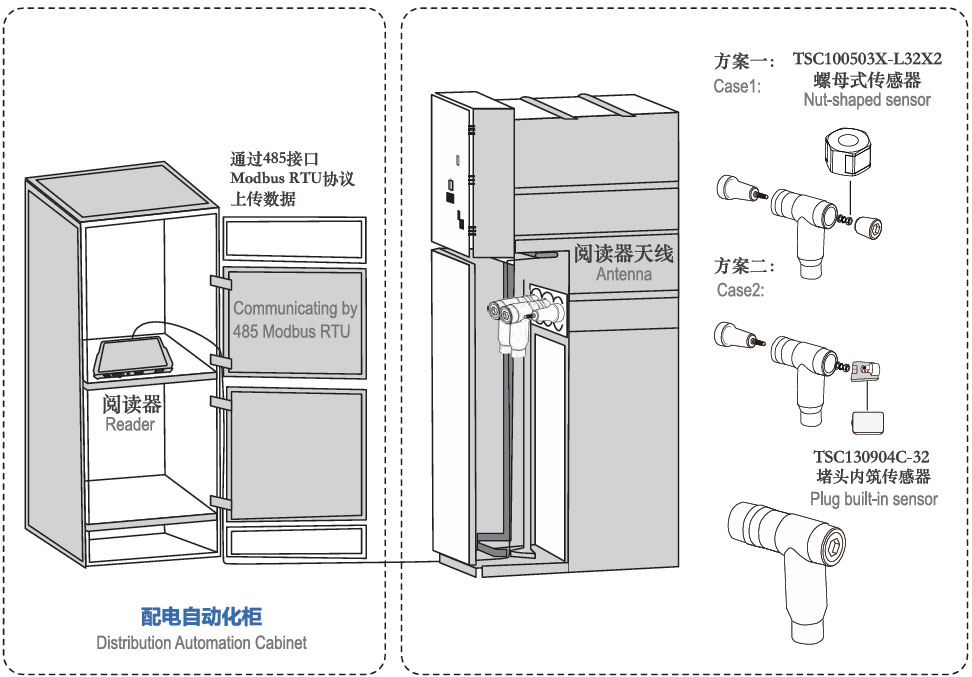

悦和科技特别设计了TSC100503X-L32X2螺母式传感器及TSC130904C-32弧边陶瓷抗金属温度传感器，可直接替代普通螺母或与金属嵌件粘合并浇筑在堵头环氧层里，通过安装在电缆室顶部的天线与自动化柜内的阅读器，实时监控3相电缆头处的温度数据。

The plug and sleeve of the ring network cabinet are high-isk areas where the temperature abnormalty frequently occurs. Because of the highsafely requirements of the high-voltage device, the structure of which is usualy compact, so the space around the heating points is smal, whichmakes the traditional temperature monitoring device hard to instal. So Johar Technolgy specially designed the TSC100503X-L32X2 Nut-shapedsensor and TSC130904C-32 Curved sensor , The sensor can replace ordinary nut or and can be pasted with the metal inser and cast in the epoxylayer of the plug. Communicating with the antenna fixed on the top of the cable room, the reader wil receive the temperature data in real time.

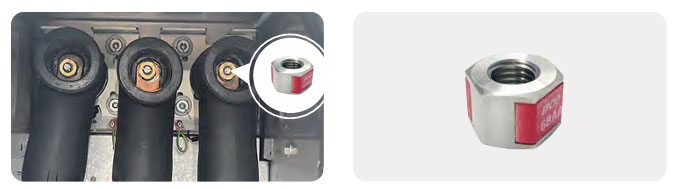

螺母式传感器 Nut Shaped Sensor

TSC100503X-L32X2螺母式传感器专为环网柜内导体接头测温设计，测温范围-40℃~+150℃，误差<1℃。通信距离可达1.5m。
传感器可直接替代普通螺母使用，安装简单牢固。整体阻燃等级>UL94-V0;温度量程内频偏<2MHz。

TSC100503X-L32X2 is a temperature sensor designed for conductor joint in ring main unit. Temperature range -40'c to +150'C,error s 1 'C. Thecommunication distance can reach 1.5m. The sensor can directly replace the common nut, and the installation is simple and frm. Flame retardantgrade≥UL94-V0:temperature range internal frequency ofset<2MHZ.

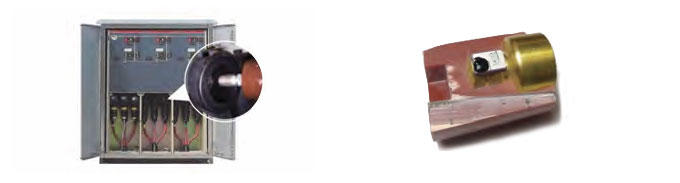

弧边陶瓷抗金属温度传感器 Curved Sensor

TSC130904C-32传感器专为环网柜堵头测温设计，测温范围-40℃~+150℃，误差<1℃。通信距离可达3m。
传感器可紧贴堵头内部金属连接头，浇筑于环氧树脂内部，与堵头融为一体。整体阻燃等级>UL94-VO;温度量程内频偏<2MHz。

TSC130904C-32 is a temperature sensor designed for plug in ring main uni. Temperature range -40'c to +150'c,errors 1 'C. The communicationdistance can reach 3m. The sensor can be embedded in the standard plug without changing the appearance and structure of plug. Flame retardangrade≥UL94-V0:temperature range internal frequency offset<2MHZ.
