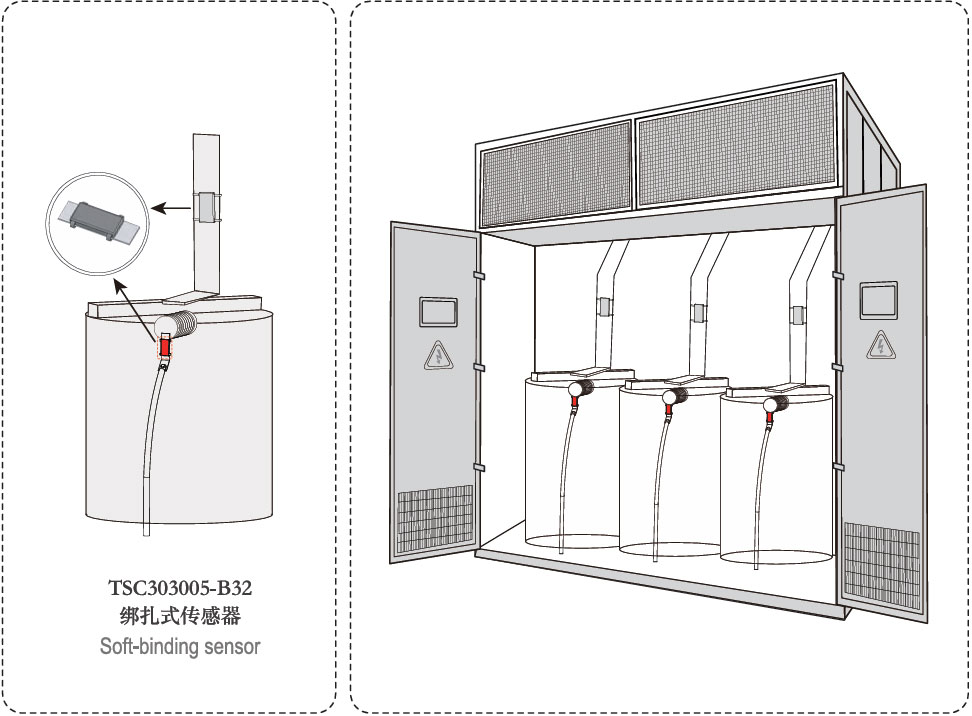

变压器的高压侧和低压侧接线铜排处为主要异常发热点。悦和科技特别设计开发了TSC303005-B32绑扎式传感器，可直接安全紧固的连接在铜排处，实时监控待测点的温度数据。

In the transformert, the busbar is the main part of the temperature abnormality accident. Johar Technology specialy designed the TSC303005-B32binding sensor , which can be fixed in the busbar bolt. The temperature data will send to the server in real time.

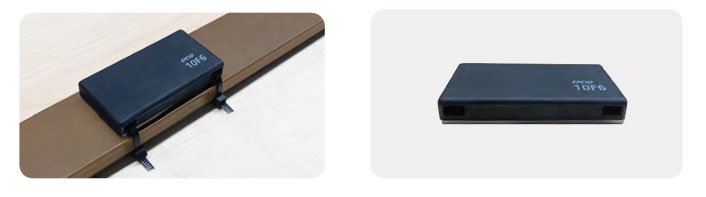

绑扎式传感器 Soft-Binding Sensor

TSC303005-B32绑扎式传感器专门为母排等复杂环境设计的一款无源无线温度传感器。测温范围-40℃~+150℃，误差<1℃。通信距离可达8m。传感器通过夹扣固定于母排处，安装简单，特别适用于低压柜母排测温。整体阻燃等级≥UL94-V0;温度量程内频偏<2MHz。

TSC303005-B32 is a temperaure sensor designed for Busbar. Temperature range -40'c to +150'c ,eror s 1 c .The communication distance canreach 8m. The sensor is fixed by cable ties, especially suitable for low-voltage cabinet busbar temperature measurement. Flame retardant grade≥UL94-V0; temperature range internal frequency offset<2MHz.
