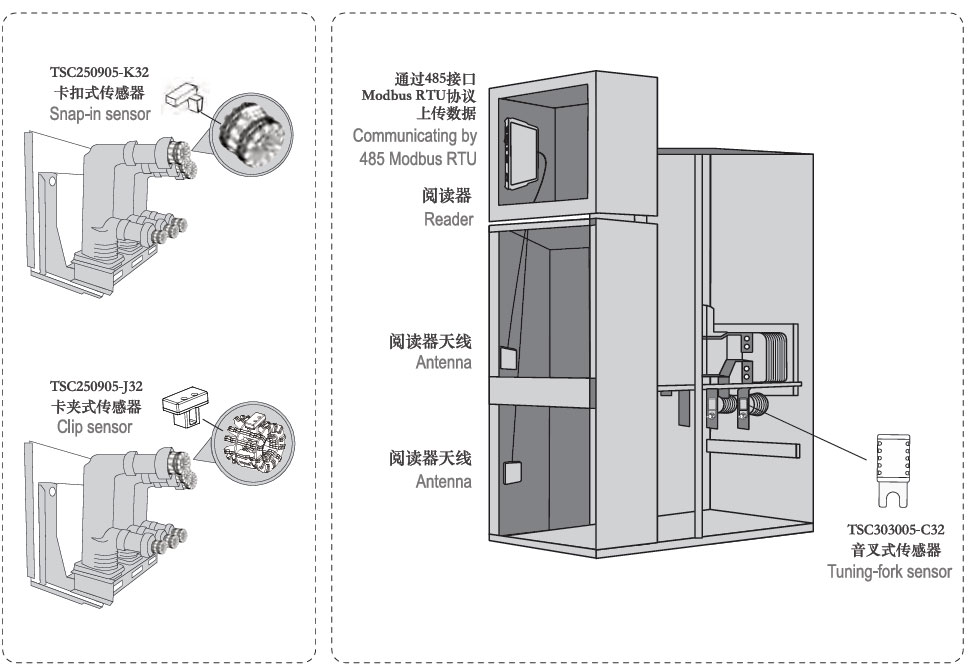

中置柜中，动触头与母排结合处是温度异常事故的主要部位。悦和科技定制设计了TSC250905-K32卡扣式传感器、TSC250905-J32卡夹式传感器与TSC303005-C32音叉式传感器，可直接安全牢固的连接在动触头与母排螺栓处，通过放置在母线室的天线与仪表室的阅读器，实时监测待测点的温度数据。

In the center cabinet,the joint beween the moving contact and the busbar is the main par of the temperature abnormalty accident. Johar Technol.ogy customized and designed the TSc250905-K32 snap-in sensor 、TSc250905-J32 clip sensor and the TSC303005-c32 tunina-fork sensorwhich can be fixed in the moving contact and the busbar bolt. Communicating with the antenna fixed in busbar room,the reader willreceive thetemperature data in real time.

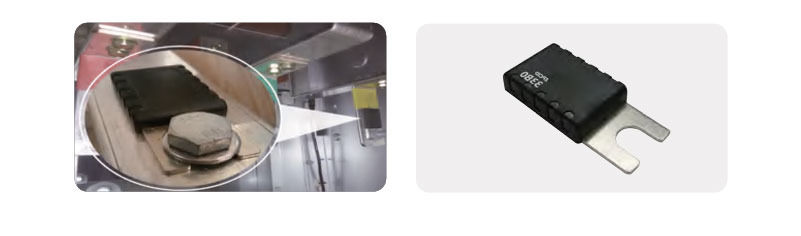

音叉式传感器 Tuning-Fork Sensor

TSC303005-C32音叉式传感器专为开关柜内母排，出线等连接点测温设计，测温范围-40℃~+150℃，误差<1℃，通信距离可达8米;音叉型结构件设计可直接通过母排搭接螺丝固定;整体阻燃等级>UL94-V0;温度量程内频偏<2MHz。

TSC303005-C32 tuning-fork sensor is specially designed for the temperature measurement of the busbars, outlets and other connecion points inthe switchgear. Temperature range -40 C to +150 C, eror S 1 C. The communication distance can reach 8m. The tuning-ork struclure makes iteasy to be fixed on busbar. Flame retardant grade > UL94-V0: Temperature range internal frequency offset <2MHz.
